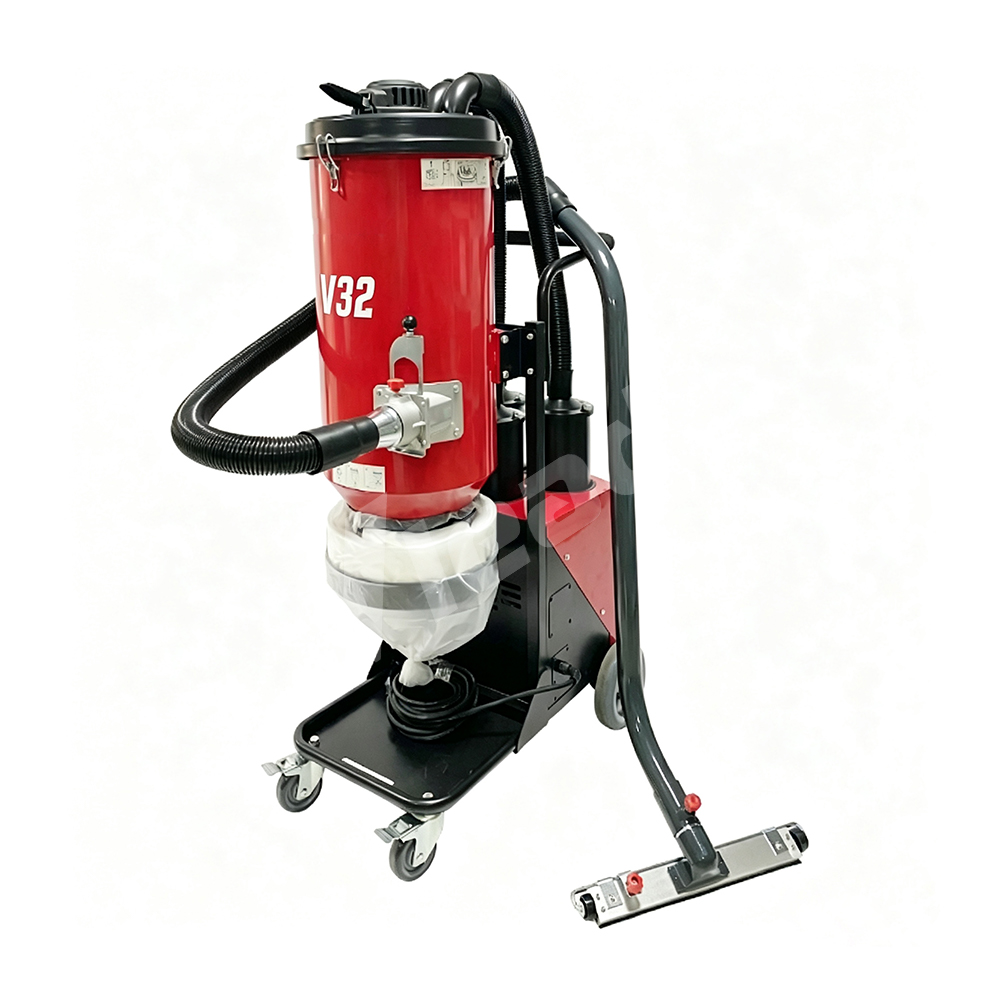

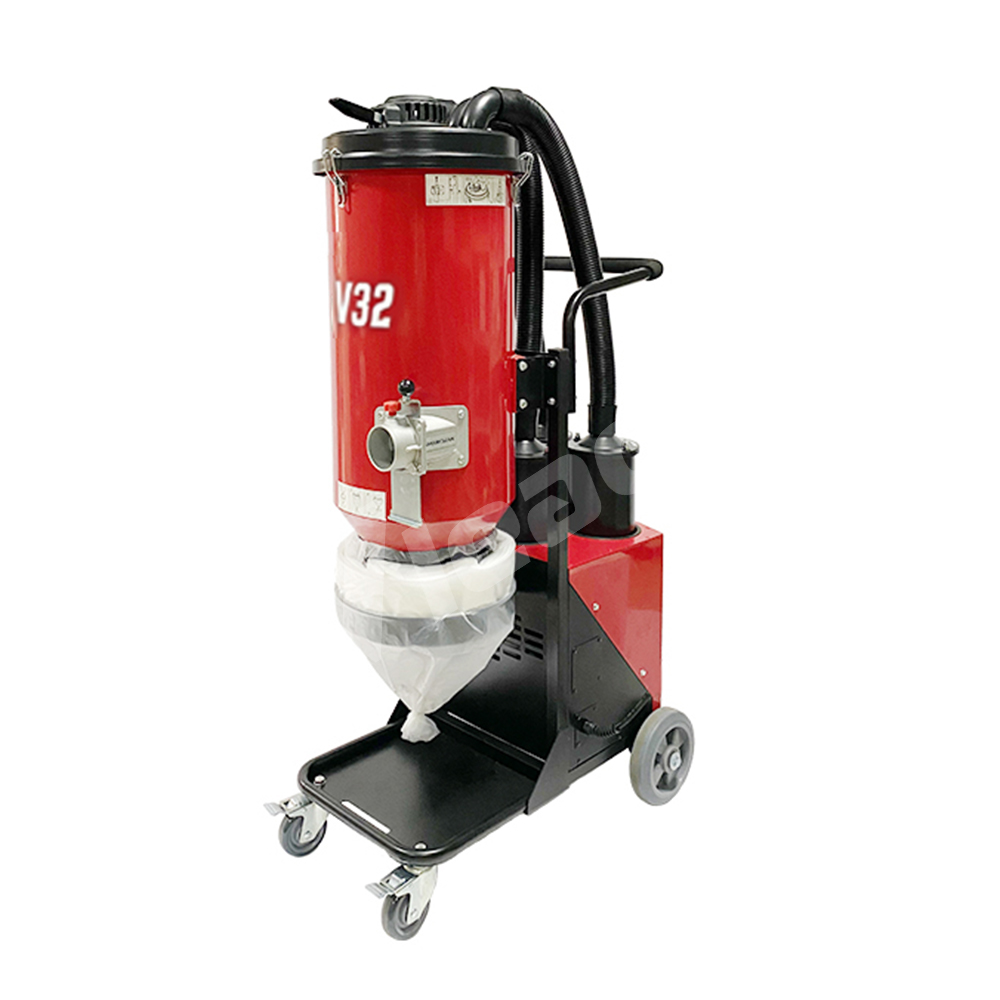

Three-Motors Hepa Dust Collectors V32

Built for heavy-duty industrial dust management, the V32 is a high-performance HEPA dust collector delivering up to 3.6 kW (4.8 hp) of multi-motor power. It features an advanced two-stage filtration system, pairing an extra-large 4.5 m² F8 pre-filter with dual certified H13 HEPA main filters (>99.99% efficiency @ 0.3μm) to satisfy strict OSHA silica safety regulations. Generating a massive 600 m³/h (356 cfm) airflow, the V32 easily connects to large-scale concrete grinders, planetary polishers, and heavy surface scarifiers for continuous, dust-free operation.

Inquire about this product

Description

Main features:

  1. Certified High-Surface Dual-HEPA Filtration: OSHA-compliant twin H13 HEPA filters (3.6 m² / 39 ft²) tested per EN 1822-1 and IEST RP CC001.6 to trap >99.99% of silica dust down to 0.3μm.

  2. Heavy-Duty Jet Pulse Filter Cleaning: Purges the extra-large 4.5 m² (48 ft²) F8 pre-filter without opening the vacuum, keeping maximum airflow (up to 600 m³/h / 356 cfm) without secondary contamination.

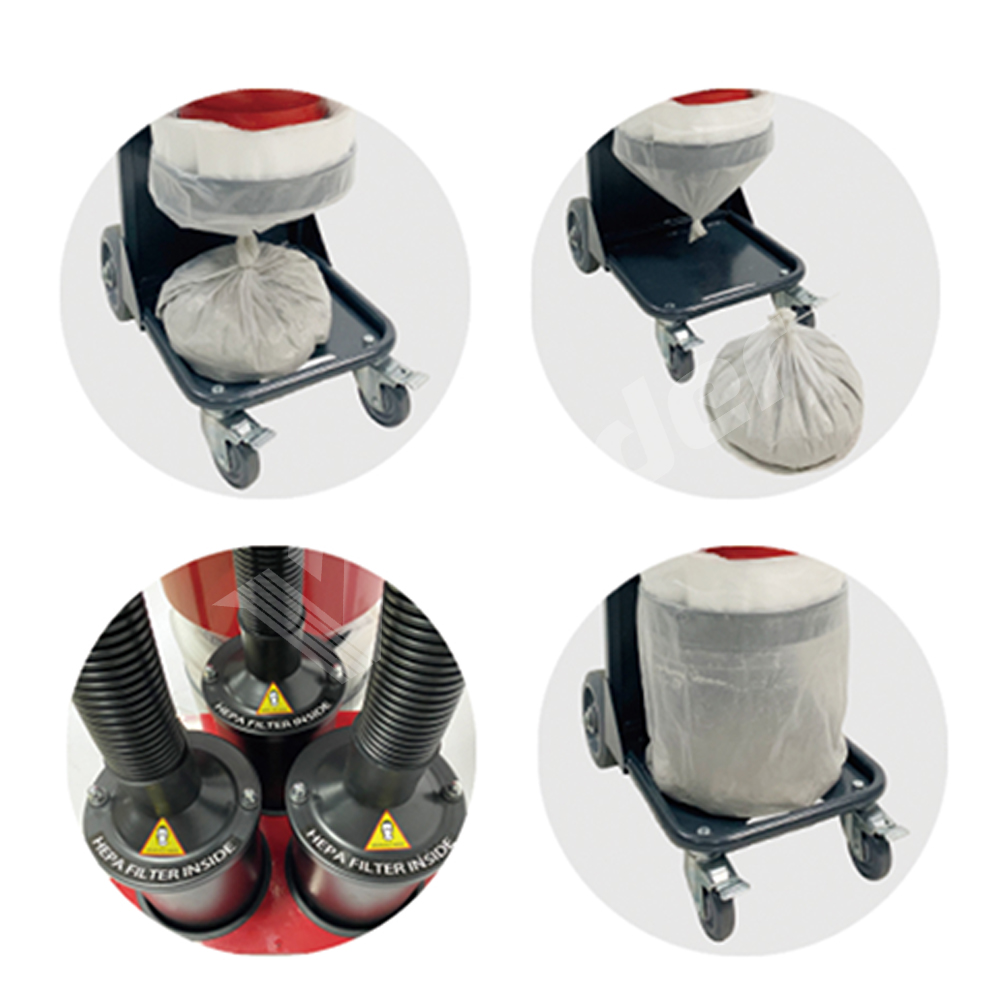

  3. Continuous Bagging System: Compatible with continuous Longopac bagging and heavy-duty plastic trash bags for clean, dust-free collection and safe disposal.

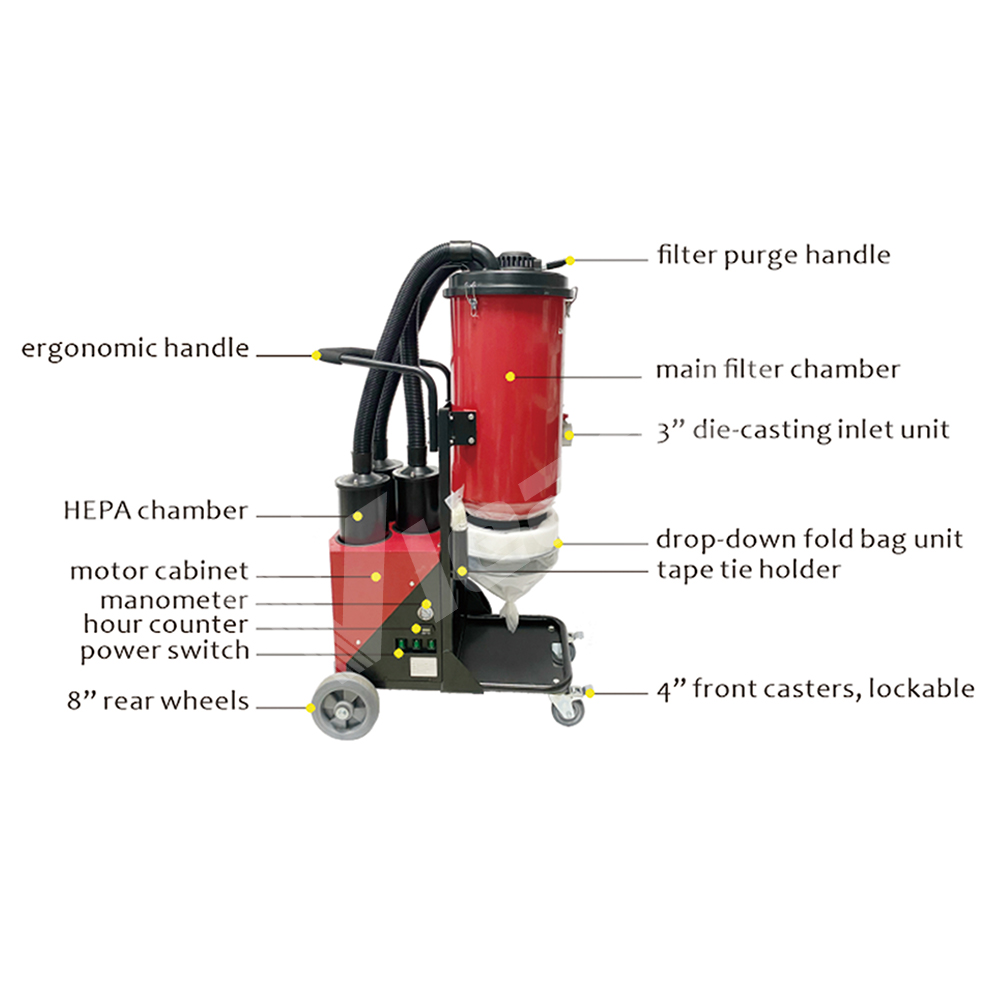

  4. Robust Industrial Construction: Heavy-duty frame (75×56×142 cm) equipped with premium casters and ergonomic handles for stability and easy job-site transportation.

  5. Real-Time System Monitoring: Built-in hour meter and vacuum gauge continuously monitor suction pressure and filter status for proactive maintenance.

Specification

Unit

V32
Voltage

230V
120V
Power

3.6kw / 4.8hp
2.4kw / 3.2hp
Amps

12A
16A
Air flow

600m³/h / 238cfm
356m³/h / 288cfm
Vaccum

220mbar / 90inch
185mbar / 74inch
Pre-filter (F8)

4.5 m², >99.5% @1.0 um
48 ft2, >99.5% @1.0um
HEPA filter (H13)

3.6 m², >99.99% @0.3 um
39 ft2, >99.99% @0.3um
Dimensions

75×56×142 (cm)
30×22×56(inch)
Net weight

64kgs
141lbs
