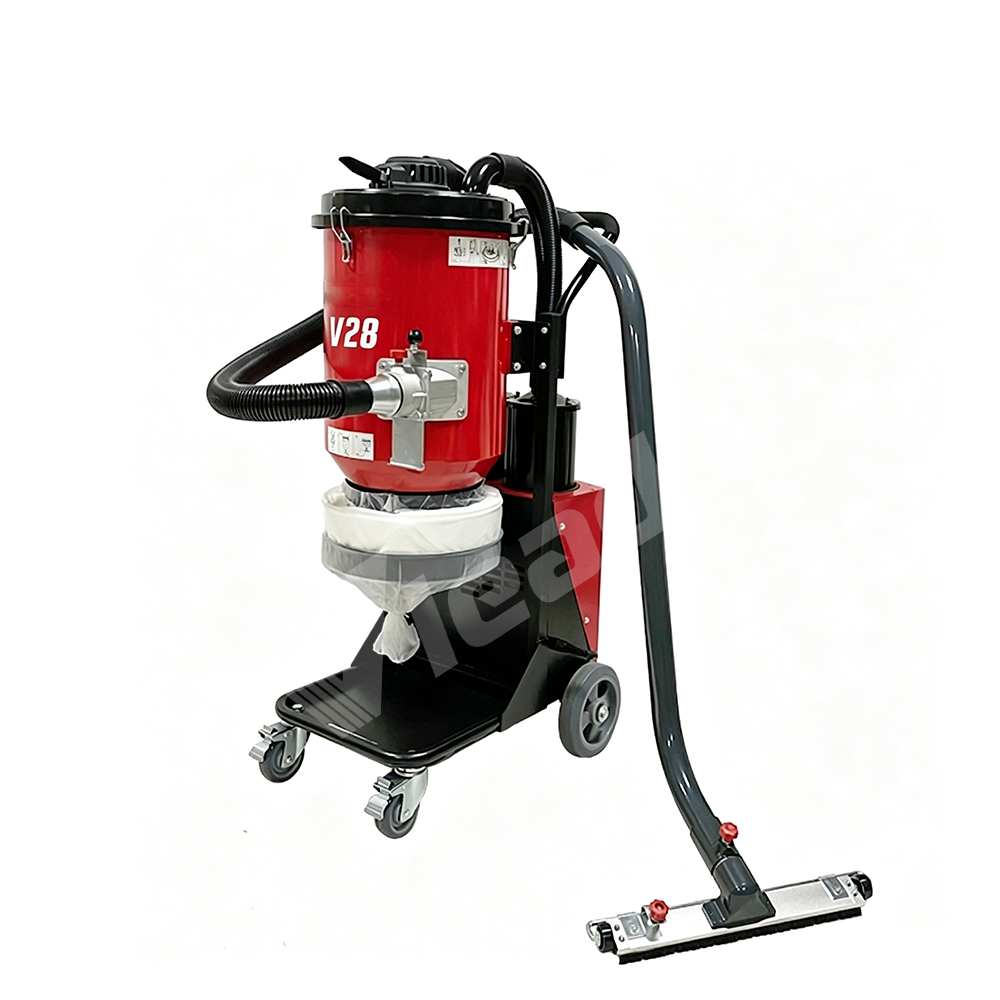

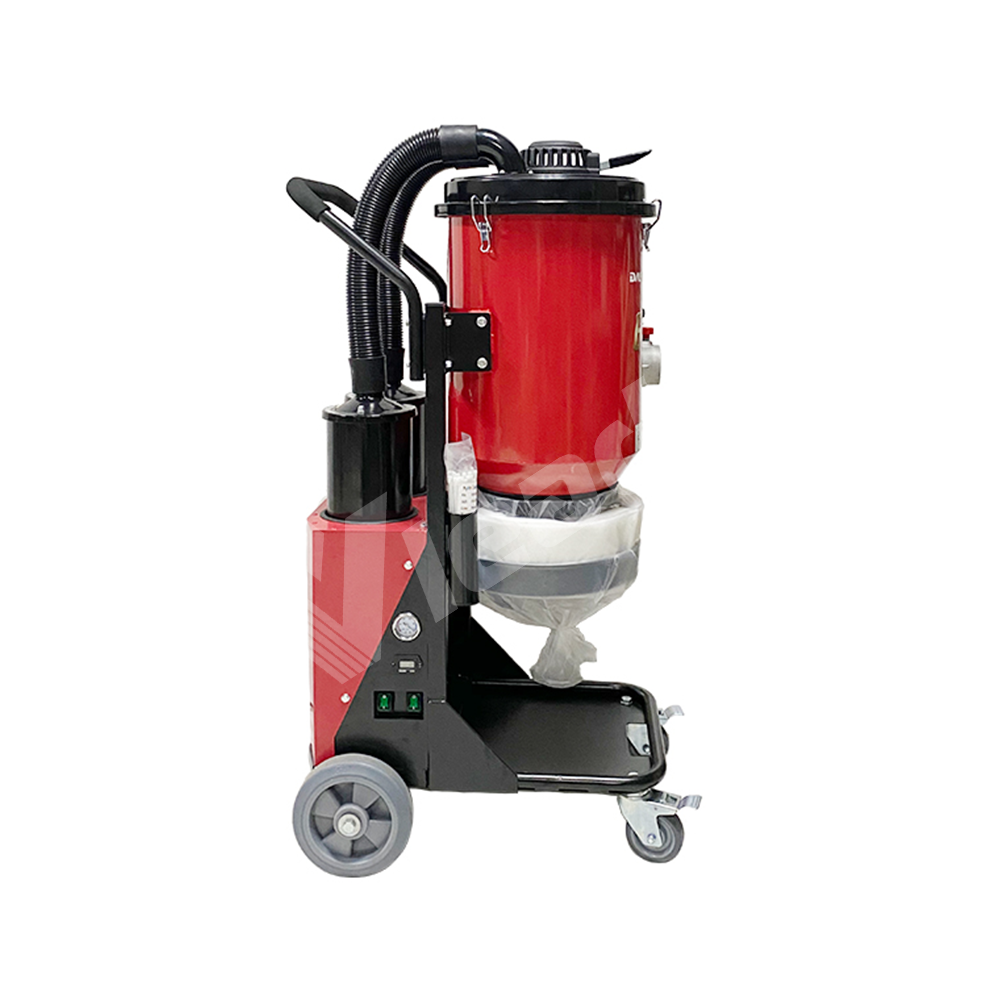

Two-Motors Hepa Dust Collectors V28

Engineered for heavy-duty industrial surface preparation, the V28 is a ultra-powerful HEPA dust extractor delivering 3.4 kW (4.6 hp) of high-torque suction. It features a advanced two-stage filtration system combining an expanded 3.2 m² F8 pre-filter with dual certified H13 HEPA main filters (>99.99% efficiency @ 0.3μm) to satisfy rigorous OSHA silica safety standards. Generating a massive 528 m³/h (310 cfm) airflow and 345 mbar vacuum pressure, the V28 is the ultimate dust containment partner for large concrete floor grinders, scarifiers, and heavy-duty milling machines.
Inquire about this product

Description

Main features:

  1. High-Efficiency Dual HEPA Filtration: Certified twin H13 HEPA filters (2.4 m² / 26 ft²) tested per EN 1822-1 and IEST RP CC001.6 capture >99.99% of fine dust down to 0.3μm for total OSHA compliance.

  2. Advanced Jet Pulse Filter Cleaning: Purges the expanded 3.2 m² F8 pre-filter without opening the vacuum, maintaining consistent airflow up to 528 m³/h (310 cfm) while eliminating secondary dust contamination.

  3. Continuous Bagging System: Fully compatible with continuous Longopac bagging and standard plastic trash bags for fast, dust-free containment and easy disposal.

  4. Rugged & Space-Saving Frame: Compact industrial design (63×56×122 cm) with heavy-duty casters for smooth job-site maneuvering and transport.

  5. Real-Time Vacuum Control: Equipped with a standard hour meter and vacuum gauge to constantly monitor high suction pressure (up to 345 mbar / 140 inch) and filter condition.

Specification

Voltage

230V
Power

3.4kw
4.6hp
Amps

10A
Air flow

528m³/h
310cfm
Vaccum

345mbar / 140inch
Pre-filter (F8)

3.2 m², >99.5% @1.0 um
34 ft2, >99.5% @1.0um
HEPA filter (H13)

2.4 m², >99.99% @0.3 um
26 ft2, >99.99% @0.3um
Dimensions

63×56×122 (cm)
24.7×22×48(inch)
Net weight

50kgs
110lbs
Unit

V28
