Diamond segments

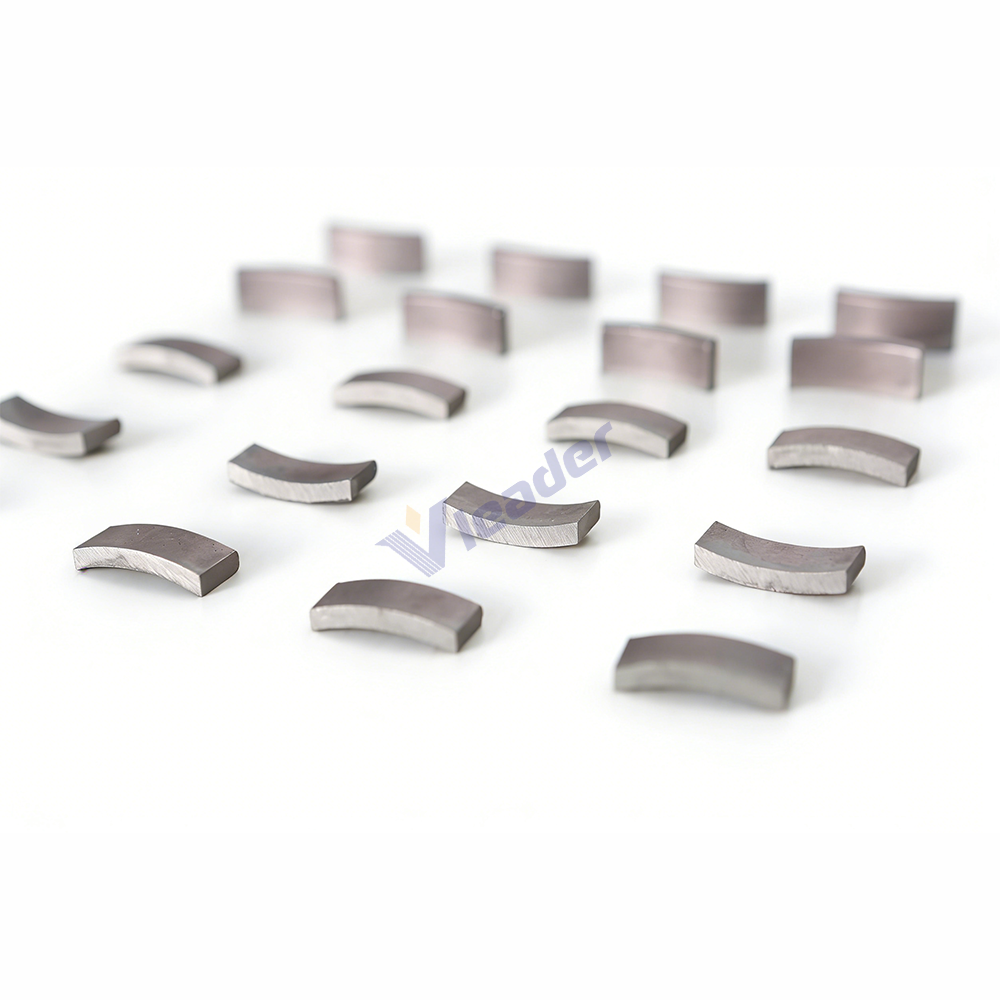

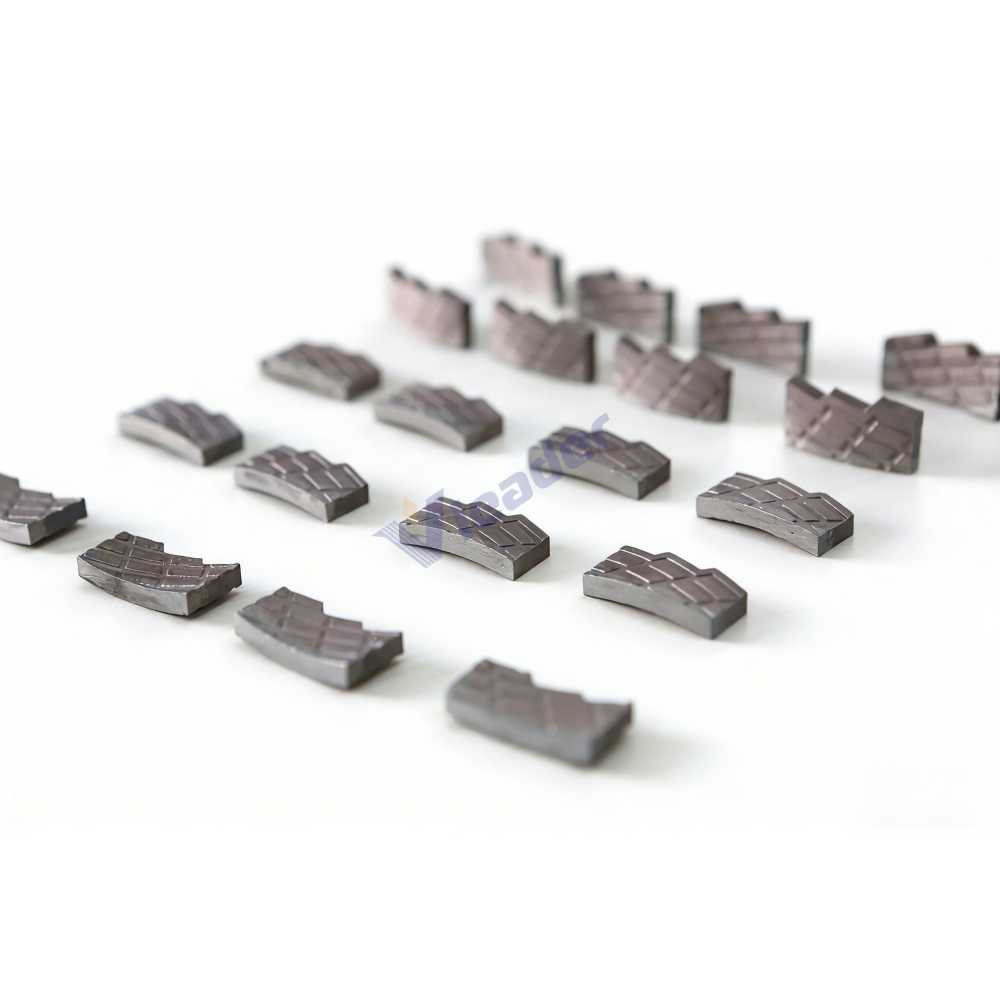

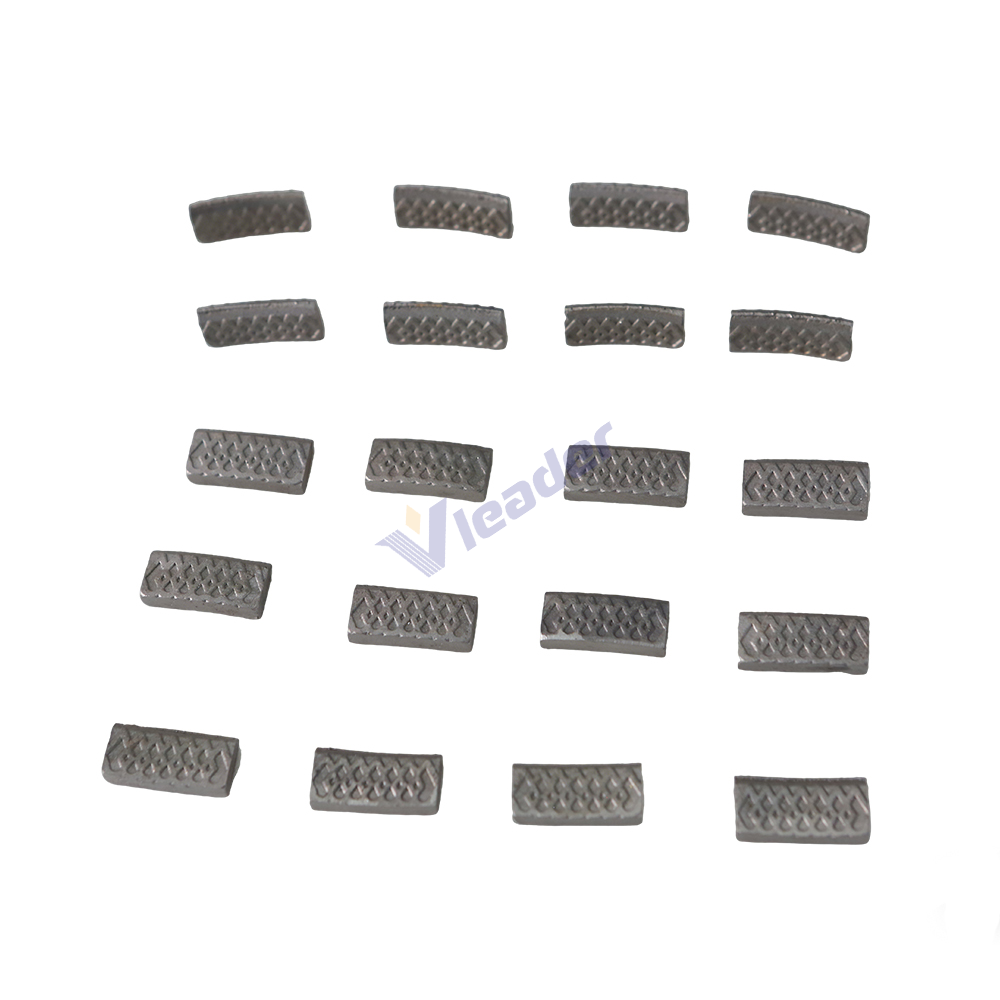

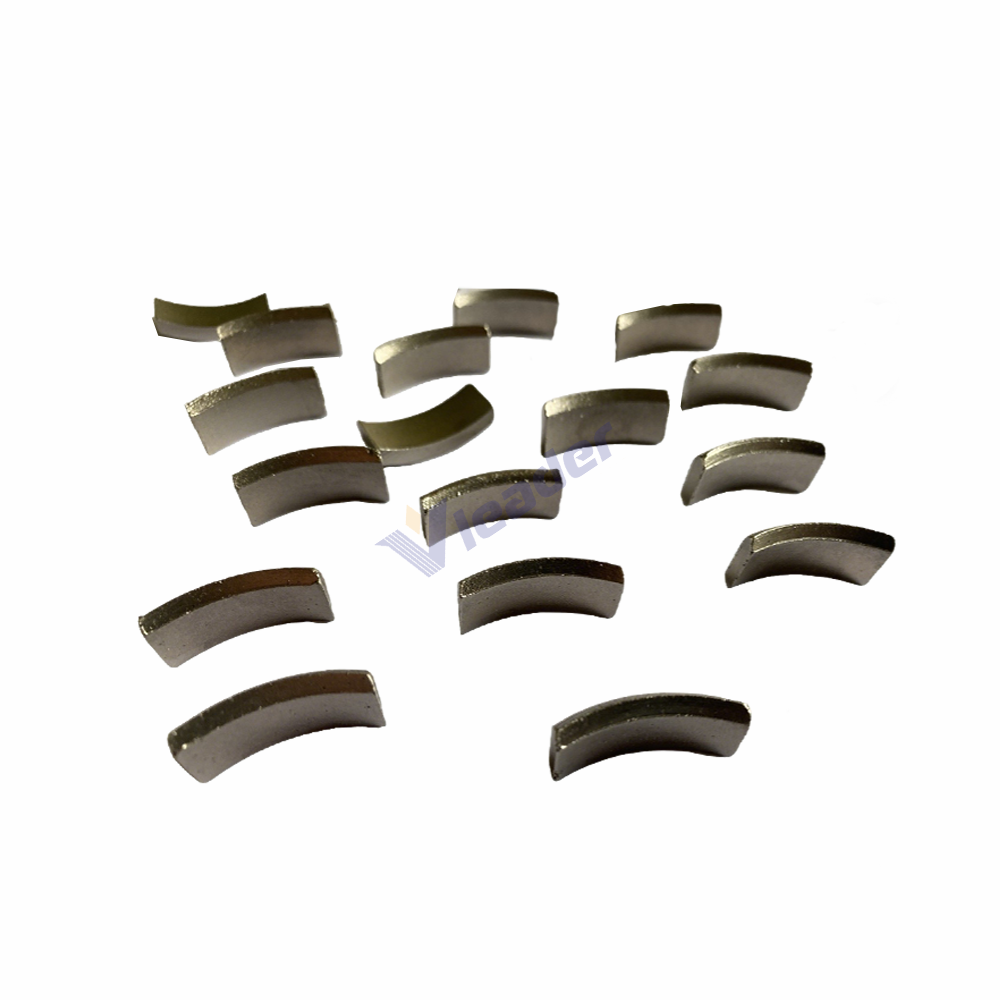

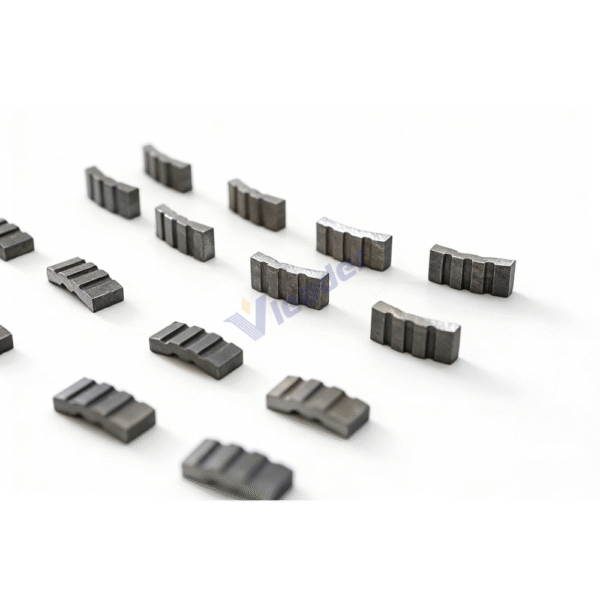

Segment on the core bits can be Normal type, Turbo Type, Roof type, Mesh type and Shark type.

Inquire about this product

Description

1.Different segment types are available. 2. Laser welding onto diamond core drill bits. 3.Different formulate are available depends on different customers and markets. 4.Suitable for a variety of materials, including concrete, reinforced concrete, and masonry. 5.Strict quality control ensures reliability and efficiency.

Specification

O.D：10-42mm

segement size: 2.5*12

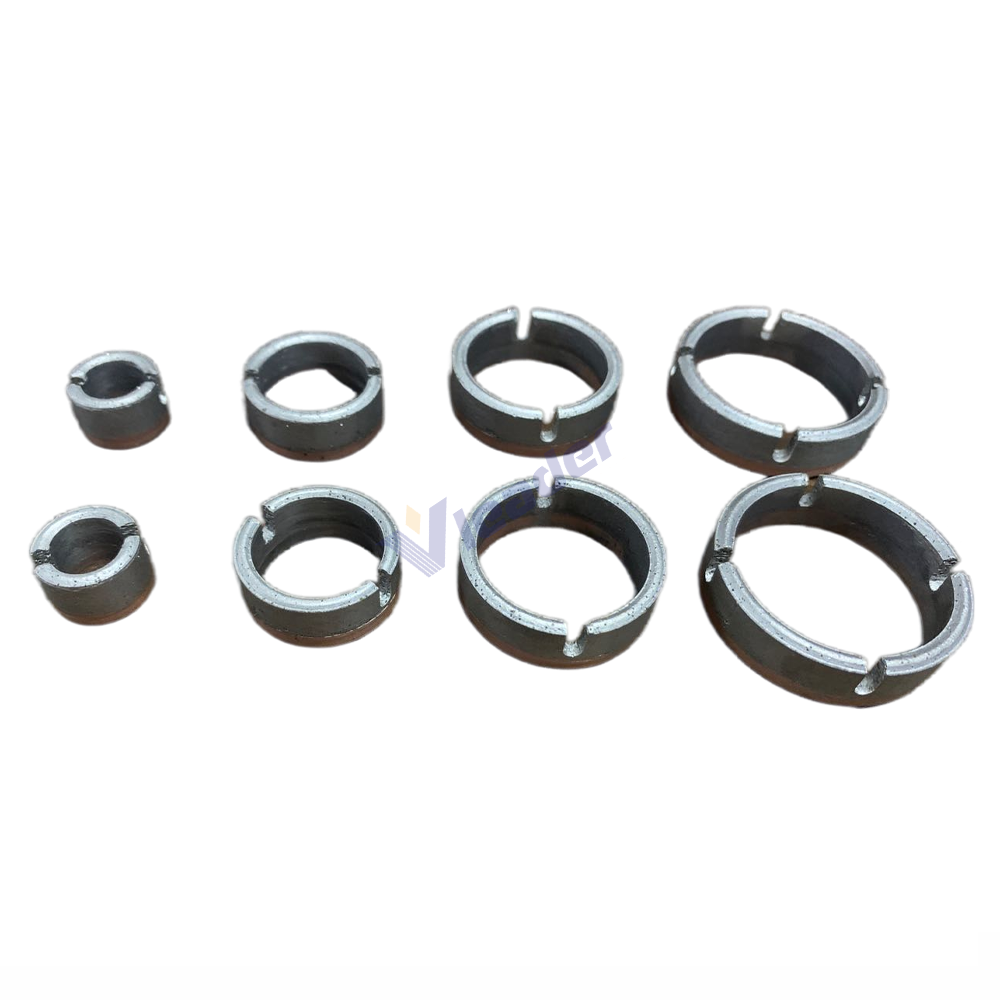

Radius: Ring
O.D：35-45mm

segement size: 20*3.5*10
Radius: R21/16
O.D：50-65mm

segement size: 24*3.5*10
Radius: R28/25
O.D：70-92mm

segement size: 24*3.5*10
Radius: R38/35
O.D：100-122mm

segement size: 24*3.5*10
Radius: R50/48
O.D：125-142mm

segement size: 24*3.5*10
Radius: R71/62
O.D：150-202mm

segement size: 24*4.0*10
Radius: R87/84
O.D：225-280mm

segement size: 24*4.0*10
Radius: R125/121
O.D：300-450mm

segement size: 24*4.5*10
Radius: R200/195
O.D：500-600mm

segement size: 24*5.0*10
Radius: R250/240
